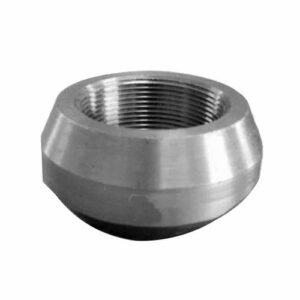

Branch Outlets

Product Introduction

Pipes often need to branch into different directions, or sometimes the flow needs to be separated from the main flow. For this purpose, we require an outlet that allows the flow from the main pipe to be diverted to a branch pipe, which can be of the same size or a smaller bore size. Among the available outlets, branch outlets excel at performing this function, offering additional benefits. Branch outlets can be connected to the main pipe simply by boring a hole at the desired location for flow diversion and then attaching the Branch Outlets of the appropriate diameter. After fitting the outlet into the main pipe, the branch pipe is connected through this outlet, successfully redirecting the flow. Therefore, Branch Outlets have dual functionality: they serve as a conjugating fitting and also divert the flow in a different direction without interrupting the current flow. Advance Forging is a Manufacturer and Stockist of branch outlets in Kolkata, West Bengal, Odisha, Chhattisgarh, Assam, Andhra Pradesh, Hyderabad Telangana, Chennai, Uttar Pradesh, Bihar, and Ahmedabad Gujarat, and across India. Branch Outlets are crucial components of the complex piping system, connecting both the main pipe and the branching pipe.

Strength, Durability, and Stability

The outlet interacts with the liquid or gaseous components within the pipes, which may be corrosive. To prevent corrosion, these outlets are designed with anti-corrosion properties that enable them to withstand damage from liquids or gases. Additionally, temperature fluctuations are common in many industries, and Branch Outlets are equipped with heat resistance properties that allow them to maintain stability even under extreme temperatures. In addition to their resistance capabilities, Branch Outlets are known for their impressive strength, durability, and stability. The numerous properties of Branch Outlets have led to their widespread use in various industries, including chemicals, fertilizers, power generation, petrochemicals, paper and pulp, oil and gas processing, food processing, and water supply systems.

Stock Size Range and Specifications For Branch Outlets

• Specification :ASTM A182 / B564 / B462 / A105 / A350.
• Dimension Standard :ANSI/ASME B16.11, B 16.28 MSS-SP-43, JIS B2313, JIS B2312 etc.
• Standard :ANSI, ASME, BS, DIN, EN etc.
• Size :⅛” NB – 4” NB (DN6~DN100)
• Class / Pressure :3000 LBS, 6000 LBS, 9000 LBS ( 1000 PSI – 15000 Psi ) etc.
• Connection Type:BSP, BSPT, NPT
• Stainless Steel Threaded Branch Outlets :304, 304L, 304H, 310s, 316, 316L, 316H, 316Ti, 317/317L, 321/321H, 347/347H, 904L, 446.
• Duplex Steel Threaded Branch Outlets :S31803 F51, S32205 F60.
• Super Duplex Steel Threaded Branch Outlets :S32750, S32760.
• Carbon Steel Threaded Branch Outlets :A105, LF2, IS 2062, F42, F46, F52, F60, F65, F70.
• Alloy Steel Threaded Branch Outlets :F1, F5, F9, F11, F12, F22, F91.
• High Nickel Alloy Branch Outlets :200, 201, 400, K500, 600, 601, 625, 718, 800, 825, C22, C276, B2, X.
• Alloy 20 Threaded Branch Outlets :Alloy 20.

Branch Outlets Application Industries

• Petrochemical Industry
• Chemical Industry
• Oil and Gas Industry
• Pulp & Paper Indusry
• Power Plant Industry
• Food Processing Industry
• Pharmaceuticals Industry
• Energy Industry
• Aerospace Industry
